Statie Radio Portabila CB27 INTEK H-512

Statie Radio Portabila CB27

INTEK - H-512

Transceiver portabil 27 MHz (CB), INTEK, AM/FM, 4W, Afisaj LED

Alte imagini:
Statie Radio Portabila CB27 INTEK H-512
Acest produs nu mai este disponibil!
Disponibilitate :
Sunati

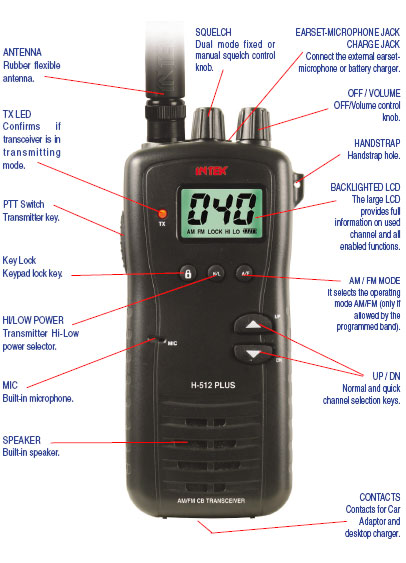

INTEK H-512 - MULTI STANDARD PROGRAMMABLE CB 27 MHz AM/FM 4W HANDHELD TRANSCEIVER
CB 27 MHz AM/FM handheld transceiver, with 8-band programmable multi standard circuit design, matching the frequency & operating mode requirements of various countries. Very compact and light case (185 gr. only). Backlighted LCD display with 3-digit band/channel reading and battery level  meter.
Low voltage/low current drain MOSFET transmitter circuit design, full 4W RF power, radio is powered with only 6 pcs AA batteries.
Hi-Low transmitter power for battery saving and mobile car
adaptor (optional). One radio only, ready for use in all the
European countries !

Features
 • MULTI STANDARD CIRCUIT DESIGN
 • 8 BANDS PROGRAMMABLE
 • BACKLIGHTED LCD DISPLAY
 • 3-DIGIT CHANNEL/ BAND DISPLAY
 • LCD DISPLAYS CHANNEL NUMBER, AM OR FM MODE, HI-LOW TX POWER LEVEL,
 • LOCK FUNCTION AND BATTERY CHARGE LEVEL
 • ADVANCED LOW CURRENT DRAIN MOSFET TRANSMITTER CIRCUIT DESIGN
 • TRANSMITTER SELECTABLE HI-LOW POWER (1W - 4W) AM/FM
 • KEYPAD LOCK
 • TX LED INDICATOR
 • MANUAL SQUELCH CONTROL OR FIXED SQUELCH (AS) FUNCTION
 • BATTERY 4-LEVEL INDICATOR
 • ONLY 6 X AA RECHARGEABLE OR ALKALINE BATTERIES REQUIRED
 • STANDARD 2-PIN EXTERNAL EARSET-MICROPHONE JACK
 • OPTIONAL CAR ADAPTOR FOR MOBILE USE (CAR-520)
 • OPTIONAL 230VAC ADAPTOR CHARGER (AC-520)
 • CONTACTS FOR CAR ADAPTOR AND FOR DESK TYPE RAPID CHARGER

ADVANCED TOSHIBA MOSFET TRANSMITTER CIRCUIT DESIGN FOR HIGH (4W) TRANSMITTER RF OUTPUT POWER WITH MINIMUM VOLTAGE AND CURRENT DRAIN, FOR EXTENDED BATTERY LIFE (ONLY 6 X AA Ni-MH OR ALKALINE BATTERIES ARE REQUIRED).


Specifications
  General
Channels Refer to programmed band
Modes (AM, FM) Refer to programmed band
Operating Temp. -10°/+55°C
DC Input Voltage 7.2V (6 x AA Ni-MH battery)
9.0V (6 x AA Alkaline battery)
Size 68(L) x 146(H) x 38(D) mm
Weight 185 gr.
   TRANSMITTER
System CPU Controlled PLL Synthesizer
Max Output Power 4W at 9Vdc
Modulation AM / FM
Output Impedanced 50 Ohm unbalanced
Current Drain 1500 mA (at no modulation)

   RECEIVER
System CPUControlled Double Conversion Super Heterodyne
IF 1° 10.695 MHz / 2° 455 KHz
Sensitivity 0.5µV for 20dB SINAD (FM)
0.7µV for 20dB SINAD (AM)
Audio Output Power 0.3W at 8 Ohm
Audio Distorsion <8% at 1 KHz
Image Rejection 61dB
Adjacent Ch. Rejec. 61dB
Signal/Noise Ratio 45dB
Current Drain 70mA (stand-by)

   Frequency Band/Mode Program
E1 Italy/Spain 40CH AM/FM 4W
I2 Italy 36CH AM/FM 4W
DE Germany 80CH FM 4W / 12CH AM 1W
D2 Germany 40CH FM 4W / 12CH AM 1W
EU Europe/France 40CH FM 4W / 40CH AM 1W
CE CEPT 40CH FM 4W (DEFAULT)
UK England 40CH + CEPT 40CH FM 4W
PL Poland 40CH AM/FM 4W (-5 KHz)

IMPORTANT ! This 27 MHz CB transceiver has been factory pre-programmed on the CE frequency band (CEPT 40CH FM 4W). This product is subject to national restrictions. Before operating this radio, please check that the frequency band has been correctly programmed according to the country where radio is used. Please read carefully the instruction manual before using this product.


* Specificatiile pot fi schimbate fara preaviz
