NF-918S-display

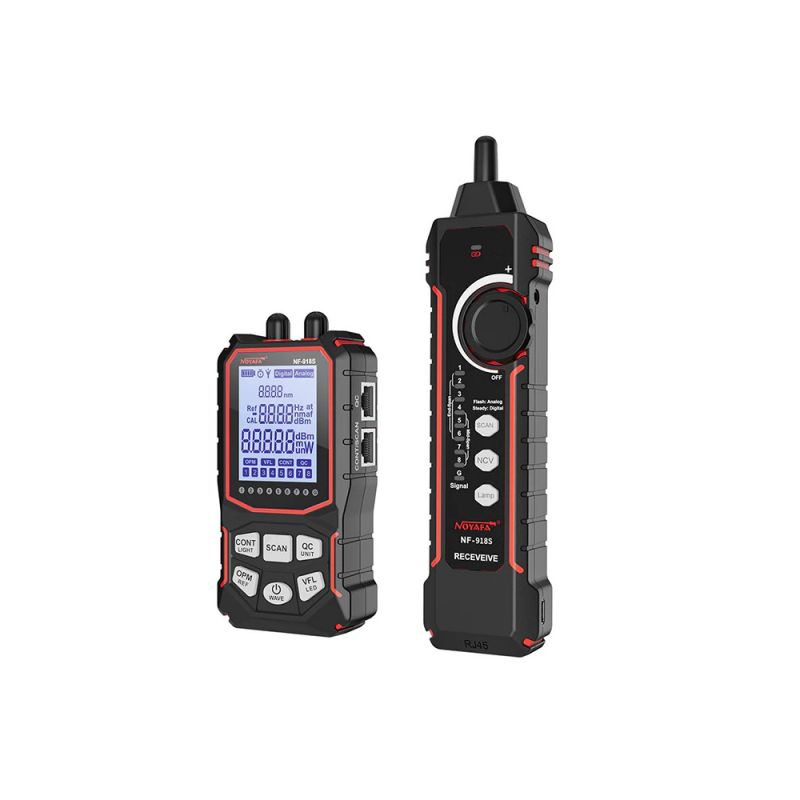

Tester digital multifunctional : cablu retea date + cablu optic

Braun Group - NF-918S

Multifunctional digital tester: data network cable + optical cable.
Data network cable tester:
Scan a cable (analog and digital) and wiremap for UTP/FTP cables cat5 and cat6.
Continuity test can detect open circuit, short circuit, crossing of network cable.
QC test measure if connector on end of network cable is well crimped.
POE switch test, identifies pins with POE voltage (withstand POE voltage 60V).
NVC strong current detection identify strong electricity cable in working environment.
LED lighting on receiver help scan cable in dark room.
Connectivity test with alligator clip wires.
Optical cable tester:
Optical power meter with FC connector interface, range -70+10dBm, wavelengths 850/1300/1310/1490/1550/1625nm
Visual Fault Locator with FC connector interface, power 10mW, wavelength 650nm (red color).
Power : Transmitter - Li-Polimer battery 3,7V / 1500mAh, Receiver - Li-Polimer battery 3,7V / 1400mAh
Low battery indicator on Transmitter and Receiver

Alte imagini:

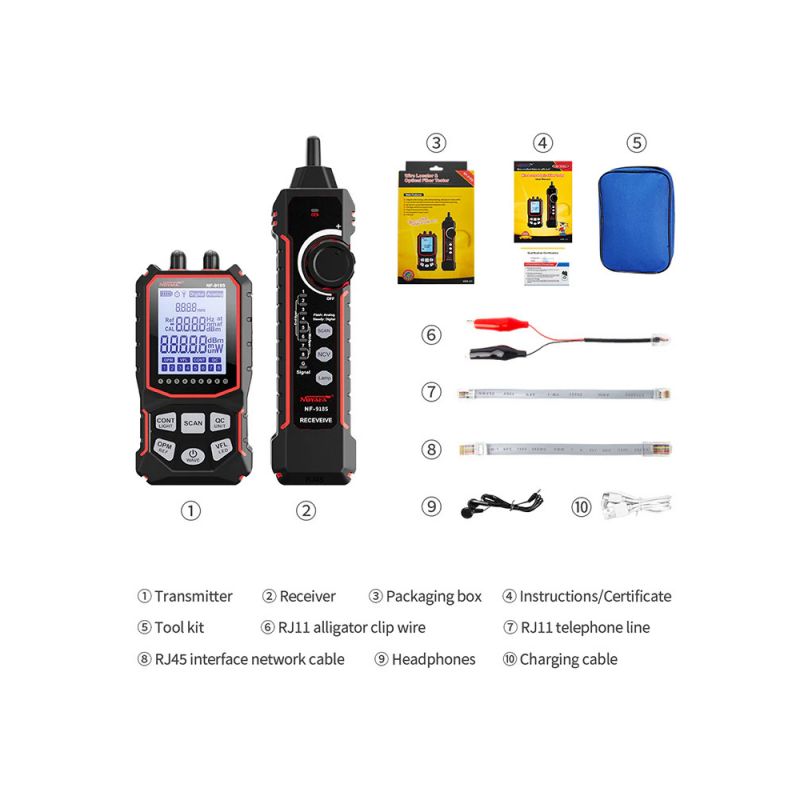

NF-918S-detailsNF-918S-display-backNF-918S-display-sideNF-918S-package

 Pret fara TVA:
284.26 LEI
Pret cu TVA 21% :
343,96 LEI
Disponibilitate :
Sunati

Specifications:

  • Model of Product: NF-918S
  • Voltage Protection: 60V
  • Charging: Type-C recharging

Transmitter

  • CONT (RJ45 & PoE Switcher): Short, Open, Cross;
  • SCAN: Analog/Digital
  • VFL: 10mw
  • Wavelength: 850/1300/1310/1490/1550/1625
  • Optical Power Range: -70 to 10dbm
  • QC Test: RJ45-8P/RJ11, the shortest length≥10cm
  • Low voltage prompting: Indicator light flashes when power is lower than 3.5v
  • Auto Power-off: 30 mins
  • Size: 133*69*32mm

Receiver

  • Sensitivity Adjustable: Yes
  • NCV: Yes
  • LED Lighting: Yes
  • Low voltage prompting: Yes
  • Power Supply: 3.7V 1400mAh lithium battery
  • Size: 198*50*32mm
